APS MP 100A

APS MP Movable Partition

The APS MP 100A Movable Partition is a versatile and robust solution designed to maximize the efficiency of space usage in various environments. With a high Sound Transmission Class (STC) of 52, it ensures excellent acoustic performance, making it ideal for settings where noise control is essential.





Key Features

  • Sound Transmission Class (STC) 52: Provides superior sound insulation.

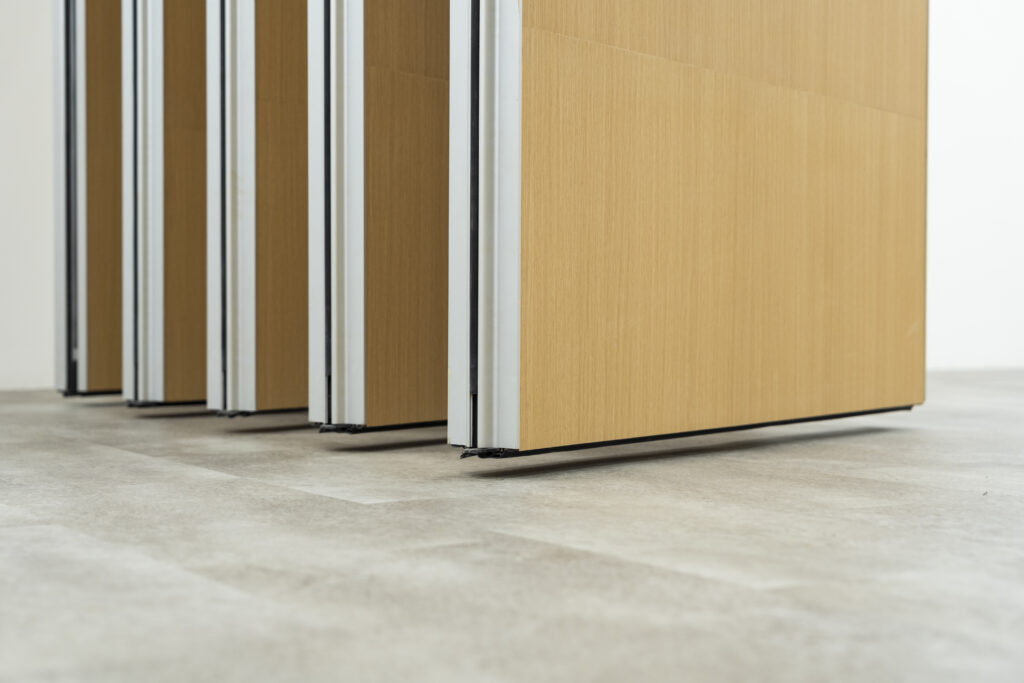

  • Individual Flat Panels: The partition consists of a series of individual flat panels for flexible configuration.
  • Manually Operated Seals: Panels are manually operated with top and bottom support provided by retractable seals, ensuring secure and stable installation.
  • Moving Nose Element: One panel features a moving nose element with a 125 mm travel, manually operated to facilitate final closure and easy stacking of the partition.
  • Bare Finish: The panels are provided in a bare Particle Board finish.
  • Weight: Depending on the panel size, each panel weighs approximately 57 kg/m².
  • Panel Construction:

– Thickness: Each panel has a thickness of 100 mm.

-Width: The maximum width of each panel is 1215 mm.

-Material: Panels are constructed from a welded steel frame, two 18 mm thick Particle Boards laminated with 1.2 mm thick cold-rolled sheet on both sides, and filled with 80 kg/m³ Rockwool.

Sealing Mechanisms

Vertical Seals

  • Panels have natural anodized aluminum tongue and groove elements.
  • When closed, the aluminum frame remains invisible.

Horizontal Seals

  • Top and bottom of the panels are fitted with black anodized extruded aluminum channels.
  • These channels house PVC seals with a 35 mm deflection, stabilized by spring-loaded telescopic arms for a unified panel structure.

Suspension System

The suspension system features tracks made from either aluminum or cold-rolled steel, incorporating single or double wheel trolleys. The track is supported by adjustable steel hanger brackets connected to the structural support, ensuring durability and ease of movement.

Additional: APS Sound Barrier System

For enhanced sound insulation, the APS Sound Barrier System can be incorporated. It consists of:

Construction:

    • Two layers of 12 mm thick gypsum board.
    • Both sides plastered.
    • Infilled with 60 kg/m³ Rockwool insulation for optimal soundproofing.

Why Choose APS MP 100A

High Acoustic Performance:

Ensures minimal sound transmission for privacy and noise control.

Flexible and Adaptable:

Suitable for various configurations and environments.

Robust Construction:

Durable materials and design for long-lasting performance.

Ease of Use:

Manual operation with reliable sealing mechanisms for secure and efficient partitioning.
